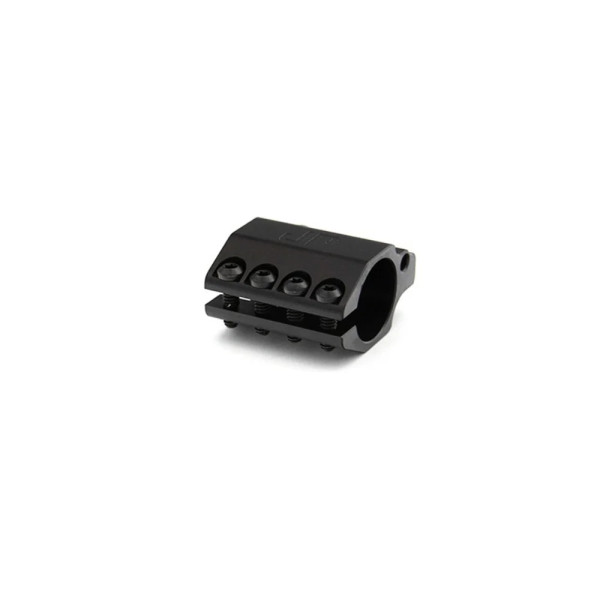

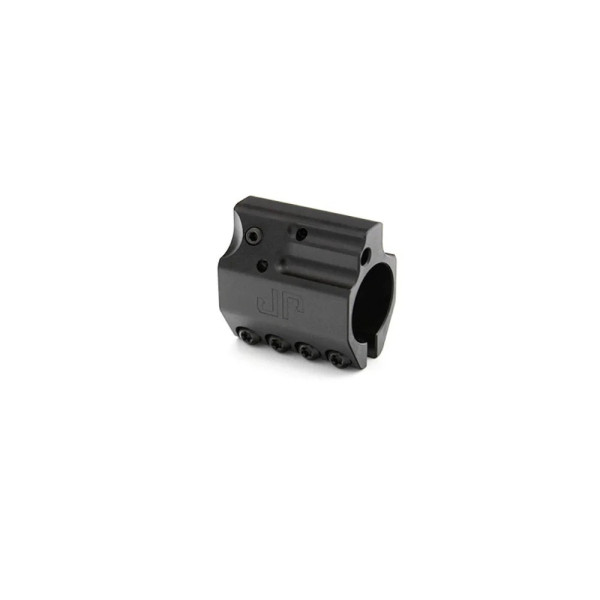

JP Adjustable Gas Block with Adjustable Locking Screw, .750 Bore, Black Stainless, Low Profile
Low-profile, one-piece .750 gas block in black 416 stainless steel featuring JP’s locking adjustment system with integral brass tension screw. True clamp-on design with four positive clamping screws for secure attachment and improved gas port sealing. Fits under most handguards.
JP Adjustable Gas Block with Adjustable Locking Screw, .750 Bore, Black Stainless, Low Profile
JPGS-5B is a minimized, low-profile gas block designed to fit beneath most modern hand guards while providing secure, precise gas control. Machined from 416 stainless steel and finished in black, this model features JP’s integral locking adjustment system, which uses a brass tension screw to lock the gas adjustment screw in place and prevent movement under recoil. The true clamp-on, one-piece design with four positive clamping screws ensures a tight, leak-free seal around the gas port and superior heat dissipation.

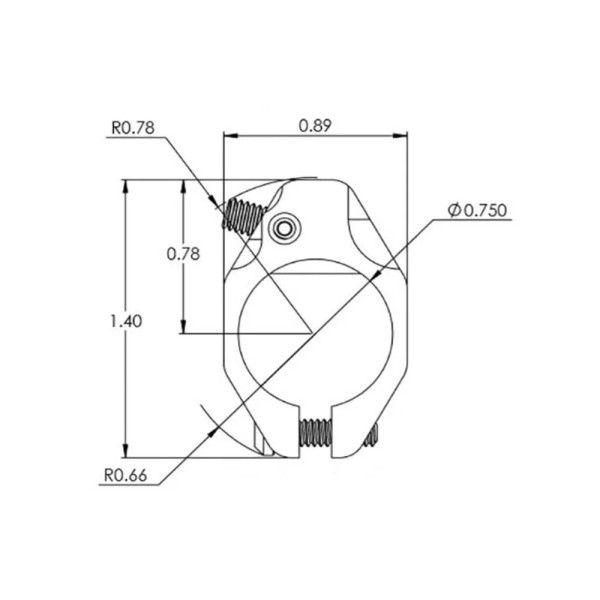

Specification:
- Barrel Diameter: .750
- Design: Low profile - 1-piece
- Material: 416 stainless steel
- Finish: Black
- Weight: 64 g / 2.25 oz
- Length: 3.25 cm / 1.28
- Height: 3.55 cm / 1.4 (overall), 0.78 (over bore)
- Width: 2.26 cm / 0.89
- Attachment: (4) 6-32 × 1/2 socket head screws, T15 Torx drive (included)
- Gas tube hardware: (1) 5/64 × 5/16 roll pin (included)
- Adjustment: 6-32 × 3/8 set screw, 1/16 hex drive (included)
Features:
- Low-profile, one-piece design fits under most hand guards
- Locking gas adjustment with integral brass set screw prevents migration of the gas setting
- Full coverage around gas port for improved seal and heat dissipation
- True clamp-on design with four positive clamping screws for secure attachment
- Easy side-access gas adjustment for convenient tuning
- Precision-machined from 416 stainless steel and finished in black for corrosion resistance
JP Enterprise Original Reference: JPGS-5B
