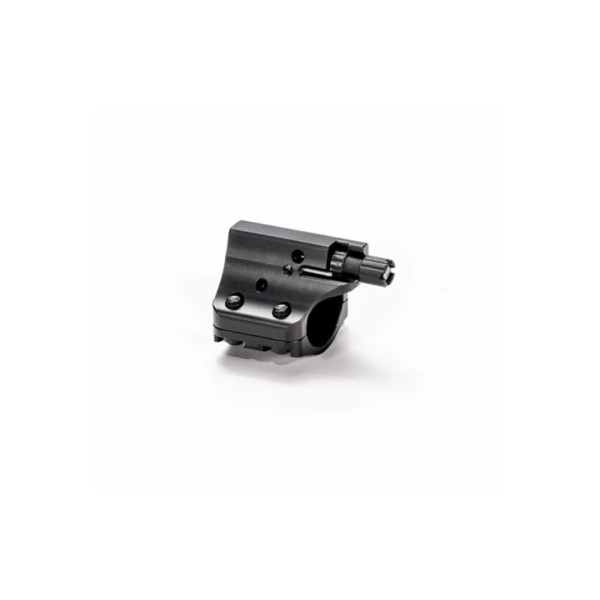

JP Two-Piece Adjustable Gas Block with Detent, .750 Bore, Black Stainless, Ultra Low Profile
Ultra-minimized D2 Series low-profile .750 gas block in 416 stainless with exterior D2 detent nut (52-click sweep) for extremely fine gas control, improved dirt tolerance, and easy installation under tight handguards. Two-piece design fits pin-and-weld barrels.
JP Two-Piece Adjustable Gas Block with Detent, .750 Bore, Black Stainless, Ultra Low Profile
JPGS-11D2 is the .750 entry in our D2 Series: an ultra-minimized two-piece gas block engineered to sit under the slimmest hand guards while providing exceptionally fine, repeatable gas adjustment and robust tolerance to dirt and fouling. The D2 Series uses an externally mounted adjustment nut with a heavy-duty 5/32 drive and redesigned forward-facing geometry that avoids handguard interference and sheds carbon. With 52 clicks between fully closed and fully open, the D2 Series doubles the resolution of our prior detent blocks—ideal for short-barrel/high-pressure systems and SBRs.
Specification:
- Barrel Diameter: .750
- Design: Low profile - 2-piece
- Material: 416 stainless steel
- Finish: Black
- Weight: 49 g / 1.73 oz

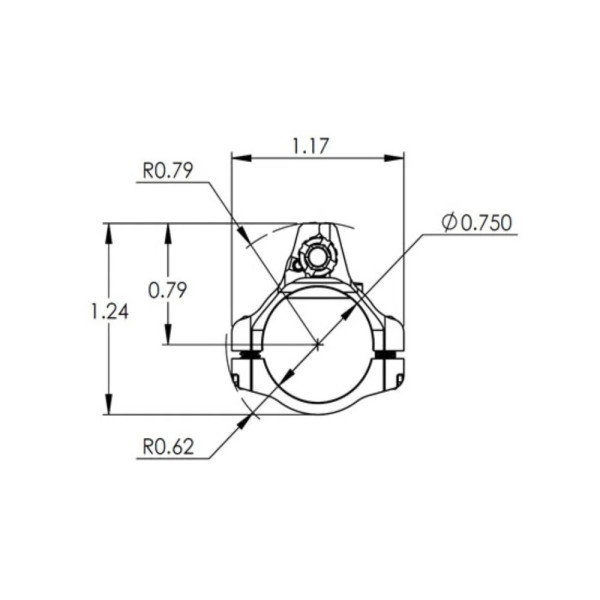

- Length: 2.22 cm / 0.875
- Height: 3.15 cm / 1.24 (overall); 2 cm / 0.79 (over bore)
- Width: 2.97 cm / 1.17
- Attachment hardware: 6-32 x 3/8 socket head screws (included)
- Gas tube hardware: Includes 5/64 x 5/16 roll pin
- Adjustment: 5/32 hex drive or screwdriver slot (tool included)
Features:
- Slim, ultra-minimized low profile for maximum handguard clearance (fits most modern hand guards)
- Two-piece design - simple installation on barrels with pin-and-weld muzzle treatments
- D2 exterior detent nut with 52 clicks per full sweep for minute gas control
- Forward-facing adjustment avoids top-rail / handguard interference and sheds fouling
- Enhanced dirt/carbon tolerance; robust 5/32 drive allows higher torque to clear fouling
- Short-journal optimized for short gas block journals (Proof-type barrels)
- Lightweight - engineered to add negligible mass to the barrel
JP Enterprise Original Reference: JPGS-11D2
